A42

The Quint Audio A42 4x2000W/8Ohms is a very high power to size ratio class-D amplifier with universal mains regulated power supplies with PFC with excellent sonic clarity.

Specifications
Specifications
Description

Power amplifier 4x3400W@4Ohms

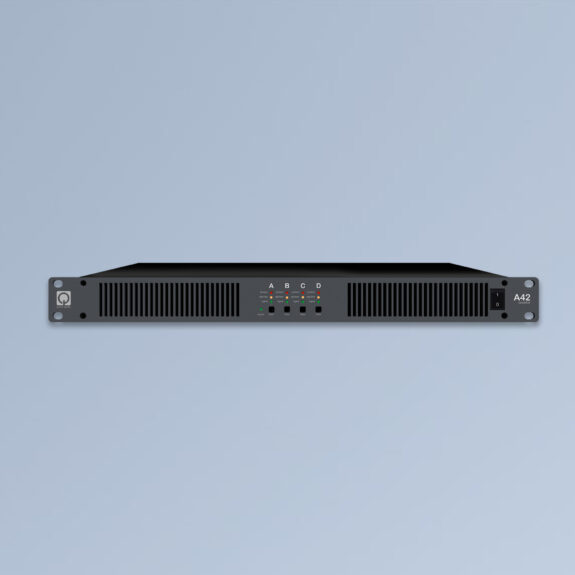

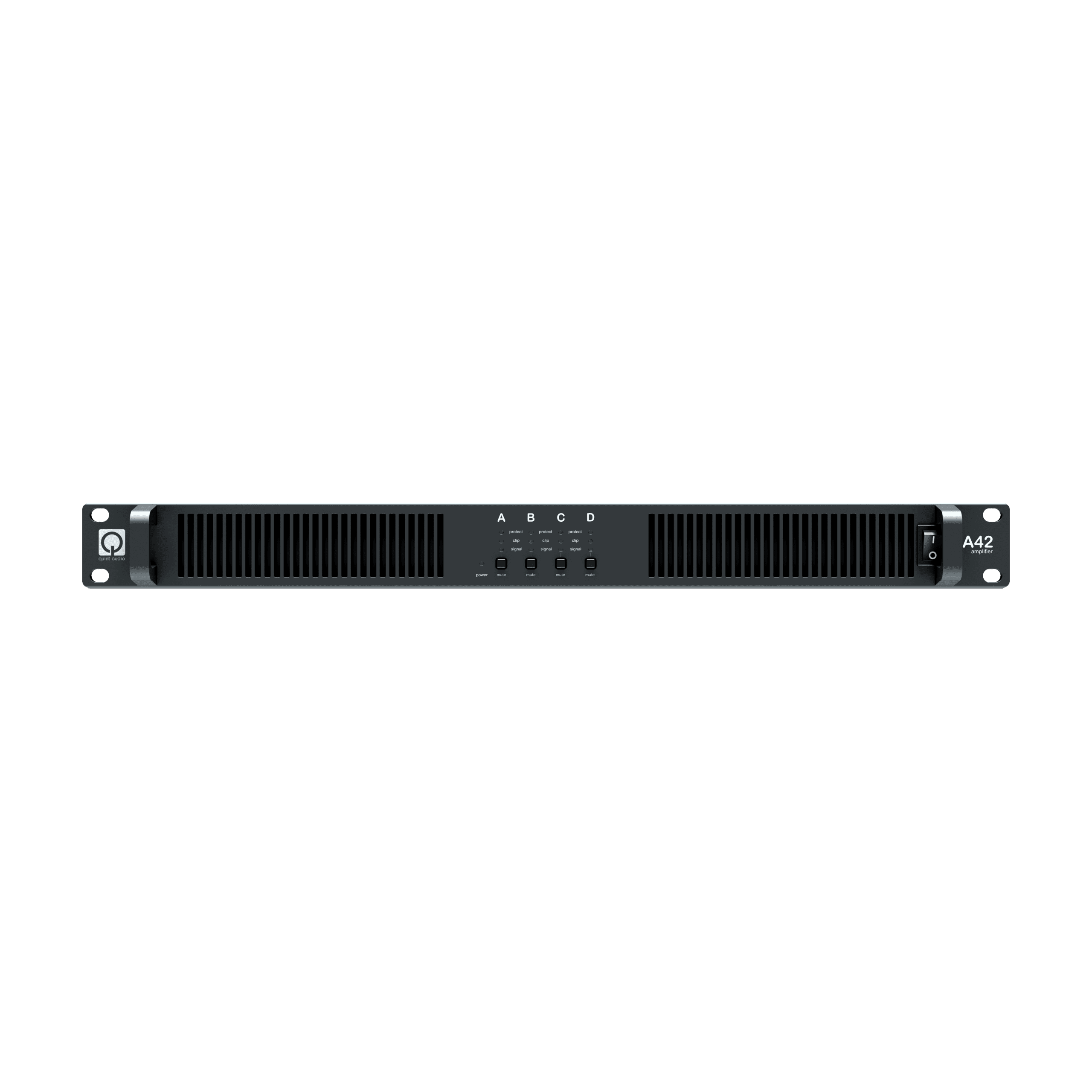

The front panel is provided with indicators for on, signal present, clip/limit and protect. For each channel a mute button is available.

FEATURES:

Clip limiters
Thermal protection
Short circuit protection
DC protection
Switching mode power supply
Active power factor correction
High efficiency design
Low working temperature
Compact, light weight, road proof design
Temperature controlled variable fan cooling
Adjustable gain settings: 32dB, 35dB, 38dB, 41dB




Application area

PA amplification


Specifications
4x 2000W@8Ohms
4x 3400W@4Ohms
4x 4750W@2Ohms

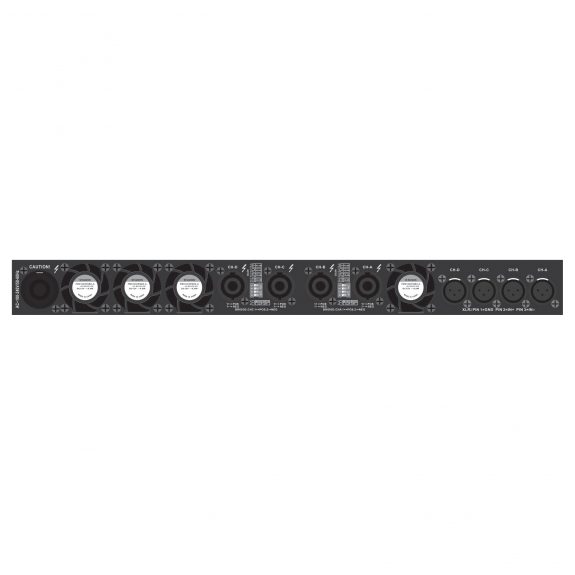

3 pin XLR
Speakon-4
PowerCon32
100-240V
45-65Hz
483x88x390mm
12 kgs
